Xbox Repair Dundee

Common Xbox Problems

Xboxes are built to take a hammering, but they’re still electronics at the end of the day. They overheat, disc drives jam, HDMI ports stop outputting a signal, and controllers develop drift that makes gaming impossible. We see all of it at our Perth Road workshop.

The most common fault we see on the Xbox Series X is the disc drive. It stops reading discs, makes a grinding noise when you insert one, or spits them straight back out. On the Xbox One, the number one fault by a country mile is the HDMI port. Microsoft used a fragile HDMI connector on the original Xbox One and it fails constantly. Plugging and unplugging the cable, moving the console, even just the weight of a stiff HDMI cable pulling on the port over time can bend or break the pins inside.

Overheating is another big one across all generations. When the thermal paste between the processor and the heatsink dries out, the console starts running hot, getting loud, and eventually shutting itself down mid-game. The fans spin up to full speed trying to cope, and if you leave it long enough the processor can suffer permanent damage.

Then there are the consoles that just won’t turn on. You press the power button and nothing happens, or you get the startup chime but no picture on the telly. Could be the power supply, could be the HDMI port, could be a board level fault. We diagnose the actual cause before quoting you, so you know exactly what you’re paying for.

WiFi and Bluetooth dropping out is something we see on older Xbox One consoles. The wireless module sits on its own daughter board inside the console, and the connection to the main board can work itself loose over time. Controllers disconnect mid-game, the console drops off the WiFi randomly. Annoying but fixable.

Controller drift affects every Xbox generation. The analogue stick modules wear out with use, and your character starts moving or the camera drifts on its own even when you’re not touching the stick. We replace the stick module itself, not the whole controller, so it’s a fraction of the cost of buying new.

Xbox Series X/S Repair

The Series X and Series S are Microsoft’s current generation. Powerful consoles, but they’ve got their own set of common faults that we see regularly.

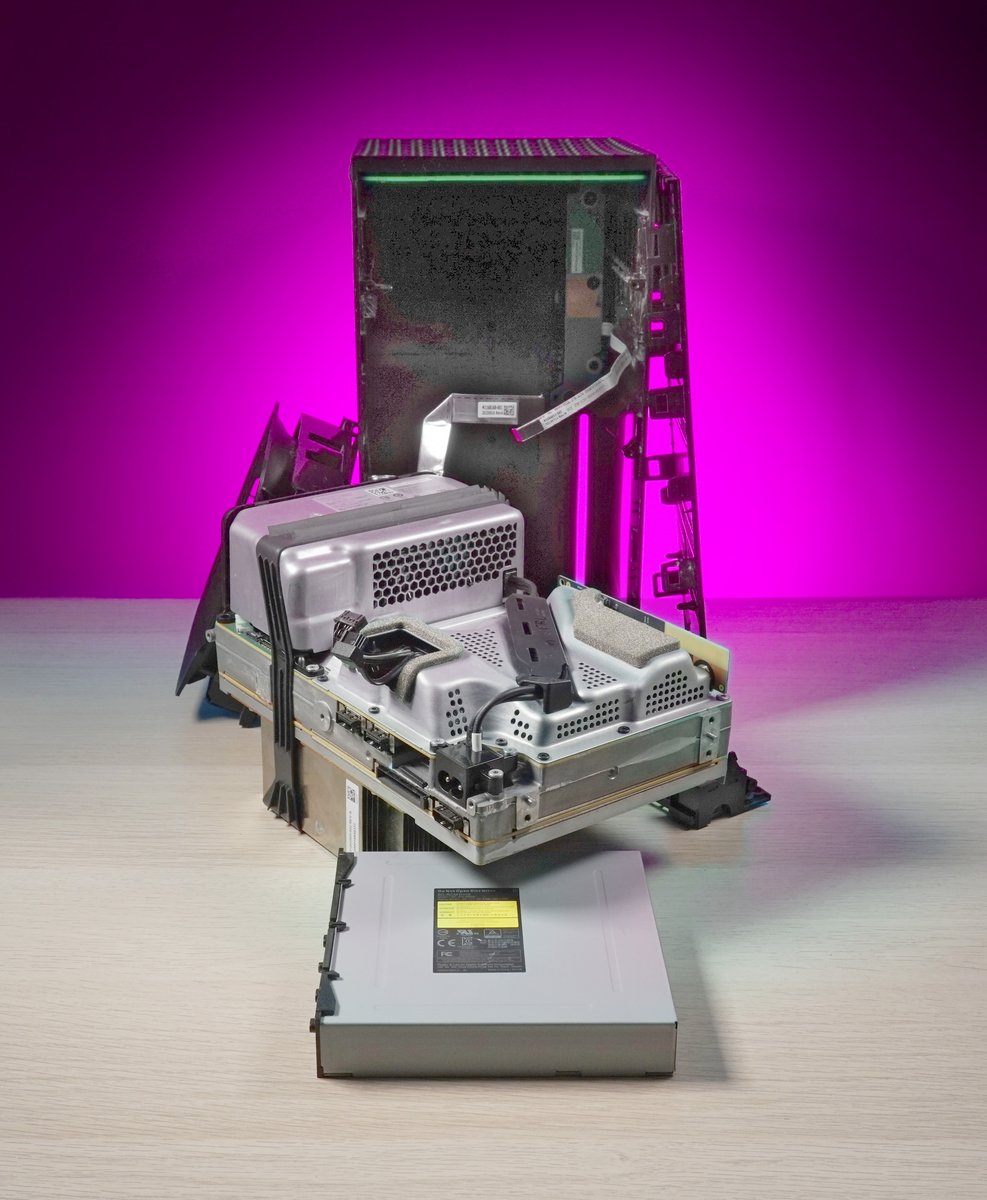

The Series X disc drive is the most frequent repair we do on this model. The Blu-ray drive mechanism can fail, leaving you unable to play physical games. Some drives stop reading discs altogether, others make a loud clicking or grinding noise when you insert a disc. In some cases the drive accepts the disc but then does nothing with it. We can repair or replace the drive unit depending on the specific fault.

The Series S is an all-digital console with no disc drive, so that particular problem doesn’t apply. But it shares most other potential faults with the Series X.

Overheating on the Series X usually comes down to dried thermal paste on the main processor. Microsoft used a large vapour chamber cooler on the Series X and it works well when the thermal interface is fresh. But after a few years of heavy use, the paste dries out and thermal performance drops off. The console gets louder, hotter, and eventually starts throttling performance or shutting down. We strip the console down, clean everything out, and apply fresh thermal paste. Makes a massive difference.

HDMI port failures do happen on the Series X, though less often than on the Xbox One. The port itself is better quality, but a heavy or stiff HDMI cable can still cause damage over time. We do micro-soldering work to replace the HDMI port if the pins are bent or broken.

The internal SSD on both Series X and S can develop faults too. If your console is crashing, failing to load games, or getting stuck on the boot screen, the storage drive could be the culprit. We can diagnose and replace it.

Power supply issues are less common on the Series X because the PSU is internal and well built, but they do happen. If your console won’t power on at all, or powers on briefly then shuts down, the power supply board could be at fault.

Xbox One Repair

The Xbox One generation covers the original Xbox One, the Xbox One S, and the Xbox One X. All three are still widely used and all three have their own quirks.

The HDMI port on the original Xbox One is the single most common repair we see. It’s notorious. Microsoft used a connector that just wasn’t up to the job, and after a couple of years of normal use the pins inside the port bend, break, or lose contact. You get no signal to your telly, a flickering picture, or a picture with lines and artefacts. We replace the HDMI port using micro-soldering. It’s a precision job, not something you can do with a standard soldering iron, but we do it regularly and the results are solid.

The Xbox One S and One X have a slightly better HDMI port, but they can still fail. The One X in particular runs hot, and the combination of heat and a heavy HDMI cable can stress the solder joints over time.

Disc drive faults are common across all four models. The drive might stop accepting discs, make grinding noises, or randomly eject discs on its own. The phantom eject problem is a well known issue on the original Xbox One where the capacitive eject button on the front panel triggers itself. Usually caused by a buildup of static or dust on the sensor. We can fix it.

Overheating is a big problem on the Xbox One X especially. It was the most powerful console of its generation and it packed a lot of processing power into a relatively small case. The thermal paste dries out, the fans can’t keep up, and the console starts shutting down during demanding games. A full thermal paste replacement and clean sorts it right out.

The original Xbox One uses an external power brick. These fail regularly. Sometimes the light on the brick goes amber and won’t turn white, sometimes it goes completely dead. We can test whether the fault is the power brick itself or something on the console’s end, and replace the brick if that’s the problem.

Hard drive failures on the Xbox One can cause all sorts of strange behaviour. Games taking forever to load, the console freezing, or refusing to boot past the Xbox logo. We can replace the internal hard drive and get the console reinstalled.

Xbox 360 Repair

The Xbox 360 is getting on a bit now, but there are still plenty of folk using them. Big game library, nostalgia factor, and some games that never got remastered for newer consoles. We still repair them, but we’ll be straight with you about what makes sense.

The Red Ring of Death is the most famous Xbox fault of all time. Three red lights around the power button, and your console is dead. It was caused by the lead-free solder cracking under repeated heating and cooling cycles, breaking the connection between the GPU and the motherboard. Microsoft eventually redesigned the hardware to fix it, but millions of early Xbox 360s were affected.

We can attempt an RROD repair, but we’ll be honest about the chances. On some consoles the fix holds, on others the fault comes back within weeks or months. It depends on how badly the solder joints have degraded. We’ll tell you the odds before you commit to spending money on it.

Disc drive problems are common on the 360 too. The drive might stop reading discs, or it might read some types of disc but not others. DVDs work but games don’t, or the other way round. The laser lens wears out over time and replacement drives are getting harder to source, but we can usually find what’s needed.

Overheating is a constant theme with the 360. The early models ran hot by design, and years of accumulated dust inside the console makes it worse. A good clean out and fresh thermal paste can bring an overheating 360 back to life, but if the GPU solder has already cracked from the heat, you’re looking at a more involved repair.

If you’ve got a 360 that’s sentimental or you’ve got a stack of games you still play, we’re happy to take a look. But if the repair cost is getting close to what a second-hand 360 costs, we’ll tell you straight.

Xbox Controller Repair

Xbox controllers take a battering. Thumbstick drift is the most common fault by far, and it affects every generation of Xbox controller. The analogue stick module wears out with use, and eventually the stick registers input even when you’re not touching it. Your character walks on its own, the camera drifts to one side, or the aim wanders during a shooter. Drives you mental.

We replace the actual stick module, not just the cap on top. That means soldering a new module onto the controller board. It’s a proper fix that lasts, not a temporary workaround.

Bumper buttons are another common failure. The LB and RB buttons on Xbox One and Series controllers use a small plastic mechanism that snaps with heavy use. If you’re hammering the bumpers in games, they’ll eventually give way. We replace the bumper mechanism so they click properly again.

Trigger springs can break too. The left and right triggers use a small spring to provide resistance, and when it snaps the trigger feels loose and floppy. Quick fix once we’ve got the controller open.

The Xbox Elite controller is a premium pad, but it’s not immune to problems. Stick drift, bumper failures, and the grip panels peeling off are all common issues. The Elite V2 also has a known problem with the bumper buttons being more fragile than they should be for the price. We repair all Elite controller models.

Charging port problems are straightforward. The newer controllers use USB-C, older ones use Micro USB. Both can get damaged from daily plugging and unplugging, or from the cable being yanked at an angle. If your controller won’t charge or only charges when you hold the cable at a certain angle, the port probably needs replacing.

Wireless connectivity issues can sometimes be the controller rather than the console. If your controller keeps disconnecting, won’t pair, or has input lag, there could be a fault with the Bluetooth or wireless module inside the controller. We can diagnose whether the problem is the controller or the console.

How We Repair Xboxes

Walk in to our Perth Road workshop with your Xbox and tell us what’s going on. We’ll ask a few questions about the symptoms, plug it in if needed, and give you an honest assessment of what’s likely wrong.

We run a diagnostic to confirm the fault. No guesswork, no assumptions. If it’s an HDMI port, we test the port. If it’s overheating, we check the thermal readings. If it’s a disc drive, we test the drive mechanism. You get a clear explanation of the problem and a quote before we do any work.

If you’re happy with the quote, we crack on. Most repairs take between one and three days depending on the complexity. Simple jobs like thermal paste replacement or controller stick drift can sometimes be done same day. HDMI port replacements and disc drive work usually take two to three days because the micro-soldering needs time and precision.

Once the repair is done, we test everything properly. Not just the specific fault we fixed, but the whole console. Power on, video output, disc drive, USB ports, WiFi, controller connectivity. We make sure everything is working before you collect it.

Every repair comes with our 90-day warranty. If the fault comes back within that period, bring it in and we’ll sort it at no extra charge. We stand behind our work.

We’ll also give you honest advice. If your console has multiple faults and the combined repair cost doesn’t make sense, we’ll tell you. If a specific repair has a lower success rate (like RROD on a 360), we’ll explain the odds so you can make an informed decision. No hard sell, just straight talking.

Xbox Repair vs Buying New

A brand new Xbox Series X will set you back around £450 or more. The Series S is cheaper at around 250, but it’s digital only with no disc drive. Most Xbox repairs cost a fraction of that.

If your Series X has a dodgy HDMI port or a failed disc drive, the repair cost is a small percentage of the replacement cost. Your console still has years of life left in it. The processor, the SSD, the memory, everything else works perfectly. It makes no sense to bin the whole thing over one faulty component.

Same goes for the Xbox One. You can pick up a second-hand One S for under £100, so if your repair is going to cost more than that, it might not be worth it. But most Xbox One repairs come in well under that threshold. And if you’ve got an Xbox One X, those still fetch a decent price second-hand because of the 4K capability, so repairing one is usually the smart move.

Your game library is another factor. If you’ve got Game Pass, your game saves are backed up to the cloud automatically. But if you’ve got a big library of physical discs, you need a working console to play them on. Repairing the one you’ve got is simpler than buying a replacement and re-downloading everything.

There’s the environmental angle too. An Xbox contains rare earth metals, circuit boards, plastic and metal that all took energy and resources to manufacture. Repairing a console that works perfectly apart from one faulty component is better for the planet than sending it to landfill and buying a new one.

We’ll always give you an honest opinion. If the repair makes financial sense, we’ll tell you. If you’d be better off putting the money towards a replacement, we’ll tell you that too. No pressure either way.
